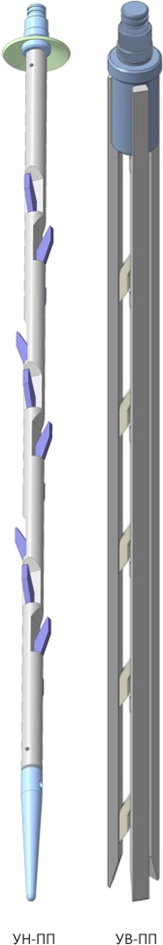

UV-PP and UN-PP wireline catchers are used to remove ruptured wireline from oil and gas wells with the help of hooks spirally located outside along the catcher bar (UN-PP) or inside on the catcher rack planes (UV-PP).
The catcher delivery set includes a wireline collector for compacting wireline before retrieval.
Specific Features
- Used with wireline of diameter from 6 to 12 mm for cutting wireline in case of excessive ultimate load;
- Universal catcher for casings of any standard size (used together with bowls of different diameters);
- Run in hole with a standard cable head NKP-1-36 or NKP-1-60;
- 6 tons maximum load (limited by wireline and cable head specifications);
- Delivery set includes a wireline collector;
- Operational life not less than 30 runs.
UV-PP Catcher
| Parameter | Value | |||
|---|---|---|---|---|
| UV-PP.01 | UV-PP.01-01 | UV-PP.01-02 | UV-PP.01-03 | |
| Working medium | water, flush fluid, oil, gas | |||
| Max operating temperature, °С | 200 | |||
| Min casing drift diameter, мм | 59 | 76 | 100 | 126 |
| Retrievable wireline diameter, mm | 6...12 | |||
| Max weight of retrievable load, kg | 6000 | |||
| Operational life, run | 30 | |||
| Overall dimensions (diameter х length), mm | 50х875 | 66х875 | 90х1000 | 116х1000 |
| Weight, kg | 2,9 | 3,9 | 7,3 | 10,4 |
UN-PP Catcher
| Parameter | Value |
|---|---|
| Working medium | water, flush fluid, oil, gas |
| Max operating temperature, °С | 200 |
| Min casing drift diameter, mm | 59 |
| Max casing drift diameter, mm | 126 |
| Retrievable wireline diameter, mm | 6...12 |
| Max weight of retrievable load, kg | 6000 |
| Operational life, run | 30 |
| Overall dimensions (diameter х length), mm | 50х1180 |
| Weight, kg | 4,8 |
