TOR-200U percussion detonators and TOR-200E electrical detonators are used for detonation pulse initiation and transmission to the detonation chain of hollow-carrier guns during TCP and wireline explosive-perforating works in oil and gas wells.
Specific Features of TOR-200U of TOR-200E Detonators:
- no initiating means in products providing safe handling;
- no connecting wires and threaded connections in product design;

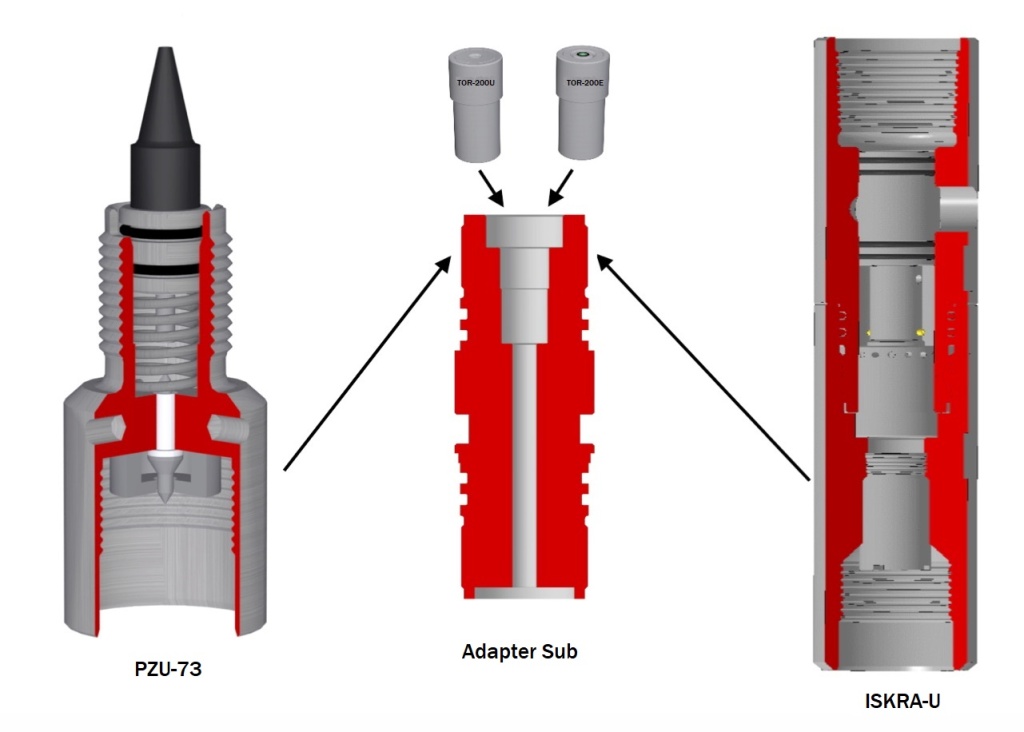

- easy installation in the gun: the detonator is placed in a corresponding socket of the adapter sub with a unified multipurpose setting size and does not require additional fixing;
- make-contact of the cable or wire central core during wireline perforating operations ensures the safety of gun assembly;
- can be transported by all transport means together with other hazardous cargoes compatible with Classification Code 1.4S.
| Parameter | Value | |
|---|---|---|
| TOR-200U | TOR-200E | |
| Diameter, mm | 25±0,1 | |
| Height, mm | 50±0,1 | |
| Maximum allowable operating temperature, °С: | ||
| 1 h hold time | 200±5 | |
| 48 h hold time | 170±5 | |
| 144 h hold time | 120±5 | |
| Explosive weight, g | 0,93 | 1,06 |
| 1,15 kg-load drop height for 100% failure-free operations, m | 2,0 | - |
| 1,15 kg-load drop height for 100% failure operations, m | 0,75 | - |
| Guaranteed actuating current, А, not less | - | 1,0 |
| Operational actuating current, А | - | 2,5±0,5 |
| Non-fire current, 5 min hold time, А | - | 0,2±0,05 |
| Electrical impedance, Ohm | - | 100±5 |
| Classification code/UN number |
1.4D/0410 1.4S/0367 |
1.4B/0255 1.4S/0456 |
Use of TOR-200U and TOR-200E
Detonators ТОR-200WR are designed to initiate the detonation chain in expendable and non-sealed perforating-explosive equipment for perforating-explosive works in oil and gas wells.
TOR-200WR Specific Features:
- absence of initiating substances in the products provides safe use;
- significantly higher resistance of the bridge (100 Ohm) compared to existing analogues ensures compliance with international safety requirements;
- the design allows to use either devices producing a direct current pulse (PVZ-1700 type) or devices producing a high-frequency alternating current pulse (PVV-A type) for initiation of detonators;
- can be transported by all transport means together with other hazardous cargoes compatible with Classification Code 1.4S.
| Parameter | Value |
|---|---|
| Outside diameter, mm | 18±0,1 |
| Length, mm | 104,5±0,1 |
| Maximum allowable temperature, °C, at maximum pressure and 1-hour hold time | 170±5 |
| Maximum allowable hydrostatic pressure, MPa, during 3 hours | 80 |
| Explosive weight, g | 2,73 |
| Guaranteed actuating current, not less | 1,0 |
| Operational actuating current, А | 2,5±0,5 |
| Security current, at 5-minute hold time, А | 0,2-0,05 |
| Electrical impedance, Ohm | 100±5 |
| Classification code/UN number |
1.4В/0255 1.4S/0456 |
