NK-PP wireline cutting tool is used to cut wireline in case of accidental stuck of wireline equipment in the well.
Specific Features
- The tool can be used on wireline with diameter up to 6,3 mm;
- Simple design and reliable operation starting from drop height of 1000 m;
- The main part of the wireline cable remains untouchable due to cutting at the point of stuck equipment;
- No need to pull the tool out to the well mouth as it is an expendable tool and remains in the bottom-hole together with the stuck equipment.
Specifications
| Parameter | Value |
|---|---|
| Working medium | water, flush fluid, oil, gas |
| Max operating temperature, °С | 200 |
| Min casing drift diameter, mm | 59 |
| Max diameter of wireline to be cut, mm | 6,3 |
| Overall dimensions (diameter х length), mm | 48х1000 |
| Weight, kg | 12,7 |

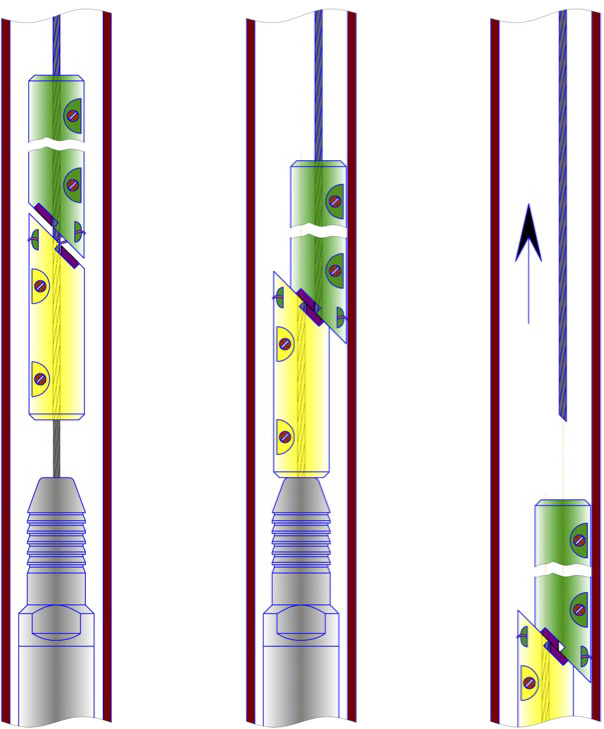

Operation Scheme
