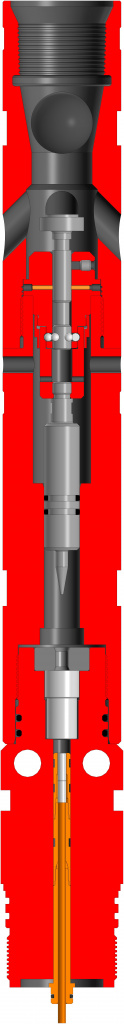

Hydromechanical firing heads ISKRA-GM are designed to initiate detonation chain of the guns lowered into oil and gas wells on tubing or drill-pipes.
The firing heads are used in vertical, directional and horizontal wells.
In horizontal and directional wells with inclination angle more than 45 degree the firing head is initiated by the rubber ball dropped into the tubing cavity and pushed through under pressure. In vertical and directional wells with inclination angle not more than 45 degree the firing head is initiated by the drop bar.
Specific Features
- Easy and reliable assembly;
- Safe operation: required hydrostatic pressure for initiation is not less than 3 MPa;
- Versatility: can be used in any well type – vertical, directional and horizontal;
- Not used in highly absorbing wells with hydrostatic pressure below minimum.
| Parameter | Значение | |||||||
|---|---|---|---|---|---|---|---|---|
| ISKRA 73-GM | ISKRA GM 200°С | ISKRA 73-GM 140MPa | ISKRA 86-GM | ISKRA 86-GM 200°С | ISKRA 86-GM 140MPa | |||
| Outside diameter, mm |
73 |
86 | ||||||
| Top connecting thread |
Tubing 60 (box) |
Tubing 73 (box) |
||||||
| Working hydrostatic pressure range, MPa | 3-80 | 8-140 |
3-80 |
8-140 | ||||
| Max allowable operating temperature for a loaded head with 1 h hold time, °C1) | 150 | 200 | 150 | 200 | ||||
| Min internal diameter of the head, mm | 44 | |||||||
| Max well inclination angle for the head initiation, degree: |
|
|||||||
| - by the ball | Not limited | |||||||
| - by the drop bar | 45 | |||||||
| Length, mm |
524 |
540 |
512 |
526 | ||||
| Mass, kg | 11,7 | 17,2 |
10,7 |
16,7 | ||||
| Load capacity, t, not more |
50 |
60 |
||||||
| Percussion detonator type | TOR-200U | |||||||
| 1) Max allowable operating temperature with the hold time more than 1 hour to be determined according to the diagram shown in the Manual for the percussion detonator. | ||||||||
