VEU-200 ignitor is designed to ignite powder and gas-generating charges for industrial purposes in hermetically-sealed blasting explosive-perforating equipment during well perforating and blasting operations.
VEU-200 ignitor features
- universal version 2 in 1 - in received state, the ignitor has brought out electrical wires (intended for VP-type packers), which can be removed to turn the VEU-200 into a wireless version, if necessary, which allows it to be used in conjunction with packer charges for landing nipples;
- design provides for the use of both devices that emit a DC pulse (PULS device) and devices that emit a high-frequency AC pulse (PVV-A type and also a PULS device) for initiating detonators;
- significantly higher bridge resistance (100 ohms) in comparison with existing analogues ensures compliance with international safety requirements;
- resistance to high humidity conditions - hermetically-sealed design prevents liquid from getting inside the ignitor;
- magnitude of the safe current and the possibility of initiating a DC pulse allows the use of VEU-200 as part of modern Plug&Perf feedback arrangements, which will allow to substitute existing ignitors of foreign production.
- there are no explosives in the construction - only igniting composition;
- possibility of combined transportation by all means of transport with other hazardous goods compatible with 1.4S classification code.

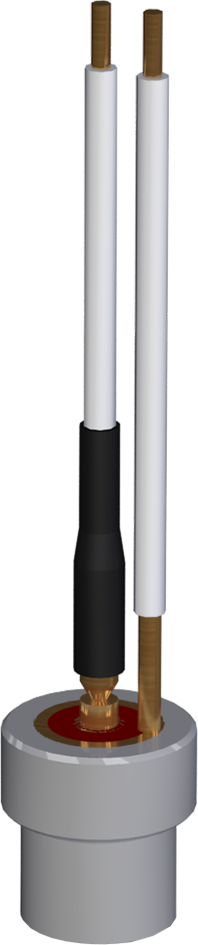

| Indicator | Value | Appearance |
|---|---|---|
| Diameter, mm | 15,2-0,2 |  |
| Height, mm: | ||
| in wired version (length of wires) | 42±1 (400±5) | |
| in wireless version | 18±1 | |
| Maximum allowable temperature, °C, with a holding time of 1 hour | 200±5 | |
| Mass of the igniting composition, g | 1,2 | |
| Guaranteed actuating current, A, is not less than | 1,0±0,02 | |
| Safe current, A | 0,2±0,005 | |
| Total electrical resistance, ohms | 100±5 | |
| Classification code/UN number | 1.4S/0454 |
