Scorpion-ON oriented expendable perforang guns are designed for well compleon in oil, gas and other horizontal and direconal wells. Oriented-direconal perforang guns are used to solve specific geologicalengineering tasks: perforaon of formaons with phasing 0°, 45°, 60°, 90° and 180° and self-orientaon of charges at a required angle to a target formaon interval. A loaded charge tube inside the carrier tube is oriented by a special rotary unit designed by LLC "Promperforator".
Oriented-direconal perforang guns have got all advantages of Scorpion perforang guns such as: high reliability, wide range of charges, user-friendly assembly and operaon.
Specific Features and Advantages:
- The gun assembly has got special simplified blank carriers;
- The whole range of DP, SDP, BH, SBH and GH charges as well as their combinaon can be used to solve various geological-engineering tasks;
- Availability of several opons of charge phasing: 0°, 45°, 60° and 180° on customer's order;
- Use of the perforang gun with maximum charge density up to 18 shot/m at different phasings;
- The perforang gun can be used either with tubing (coil-tubing) or sff wireline.
Scorpion Oriented-Direconal Perforang Gun Characteriscs
| Parameter | Value | |||||||
|---|---|---|---|---|---|---|---|---|
| Perforang gun | Scorpion 73 | Scorpion 89 | Scorpion 102 | Scorpion 114 | ||||
| Max allowable temperature, 1 hour hold me, °C | 204* | |||||||
| Max allowable hydrostac pressure, MPa | 80-140** | |||||||
| Outside diameter, mm | Without centralizers, 73 | With centralizers, 102 | Without centralizer, 89 | With centralizers, 113 | Without centralizer, 102 | With centralizers, 131 | Without centralizers, 114 | With centralizers, 138 |
| Min casing diameter, mm | Without centralizers, 88 | With centralizers, 112 | Without centralizers, 106 | With centralizers, 123 | Without centralizers, 119 | With centralizers, 141 | Without centralizers, 143 | With centralizers, 148 |
| Max carrier tube diameter aer perforaon, mm: | ||||||||
| in liquid medium | 79 | 95 | 108 | 120 | ||||
| in gaseous medium. | 83 | 99 | 112 | 124 | ||||
| Carrier length, m | 1/2 | 1/2 | 1/2 | 1/2 | ||||
| Max length of mul-carrier gun assembly, m: | ||||||||
| wireline | Limited by wireline load capacity | |||||||
| TCP | Limited by load capacity of a firing head and a plate | |||||||
| Max length of unloaded carriers | 6 | |||||||
| Min inclinaon (zenith), degree | 30 | |||||||
| Orientaon accuracy, degree | ±5 | |||||||
| Perforaon direcon, phasing, degree | Up 0, horizontal 180, down 0, up or down 45*** | |||||||
| Max perforaon density, shot/m | 18 | 18 | 18 | 14 | ||||
* Max allowable temperature can be limited by max allowable temperature for explosives contained in the perforang gun
** Max allowable pressure can change depending on the mechanical properes of carrier tubes
*** Any phasing is available upon a special order.
Charge Characteriscs
| Gun name | Charge name | Charge type | Explosive weight per charge, g | Shot density, shot/m, phasing, degree | Average parameters of charge penetrang force, QC combined target, mm | |
|---|---|---|---|---|---|---|
| Perforaon depth | Casing hole diameter | |||||
| Scorpion 73 | Scorpion PP-20GP | DP | 20 | 18 / 0, 45 ,60, 90, 180 | 750 | 11 |
| Scorpion PP-20SGP | SDP | 950 | 10 | |||
| Scorpion PP-20BO | BH | 380 | 17,5 | |||
| Scorpion PP-20SBO | SBH | 210 | 21,5 | |||
| Scorpion 89 | Scorpion PP-25GP | DP | 25 | 18 / 0, 45 ,60, 90, 180 | 1000 | 11 |
| Scorpion PP-25SGP | SDP | 1200 | 10 | |||
| Scorpion PP-25BO | BH | 600 | 20 | |||
| Scorpion PP-25SBO | SBH | 250 | 23 | |||
| Scorpion PP-25OP | GH | 600 | 16 | |||
| Scorpion 102 | Scorpion PP-32GP | DP | 32 | 18 / 0, 45 ,60, 90, 180 | 1100 | 11 |
| Scorpion PP-32SGP | SDP | 1300 | 10 | |||
| Scorpion PP-32OP | GH | 700 | 17 | |||
| Scorpion PP-32SBO | SBH | 210 | 25 | |||
| Scorpion PP-36SGP | SDP | 36 | 14 / 0, 45 ,60, 90, 180 | 1600 | 12 | |
| Scorpion PP-36OP | GH | 1000 | 15 | |||
| Scorpion 114 | Scorpion PP-32GP | DP | 32 | 18 / 0, 45 ,60, 90, 180 | 1100 | 11 |
| Scorpion PP-32SGP | SDP | 1300 | 10 | |||
| Scorpion PP-32SBO | SBH | 210 | 25 | |||
| Scorpion PP-36SGP | SDP | 36 | 14 / 0, 45 ,60, 90, 180 | 1600 | 12 | |
| Scorpion PP-36OP | GH | 1000 | 15 | |||

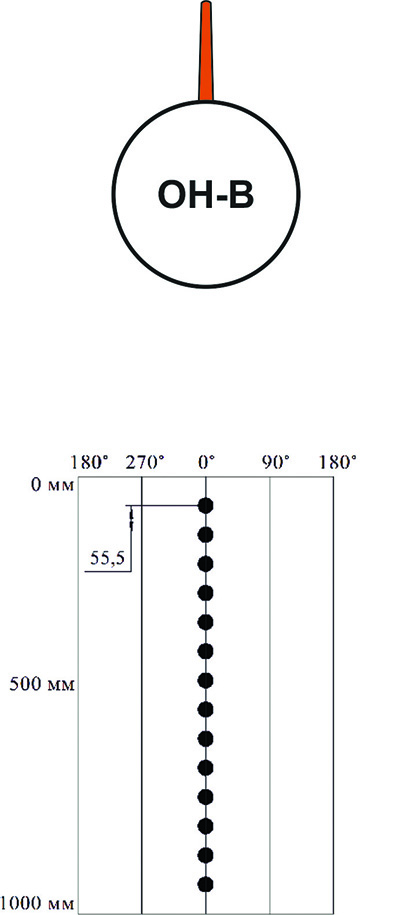

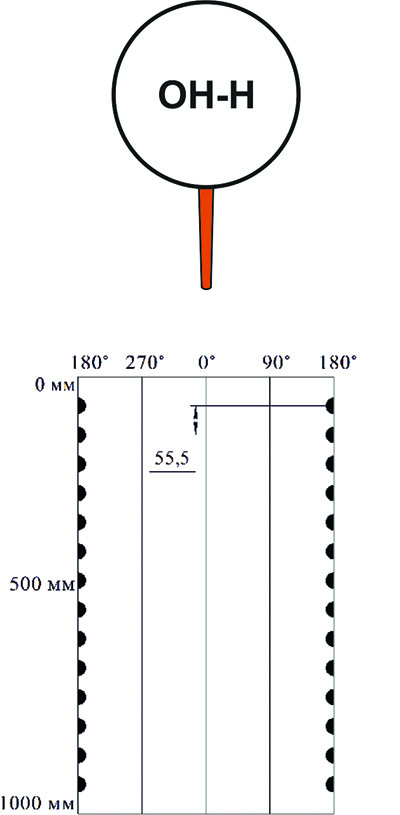

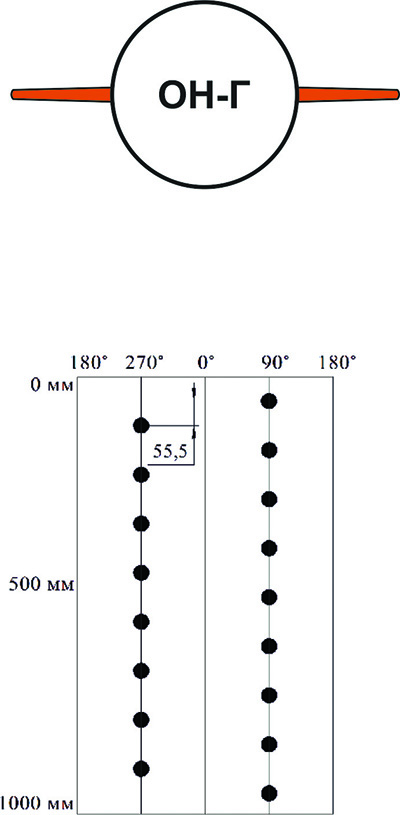

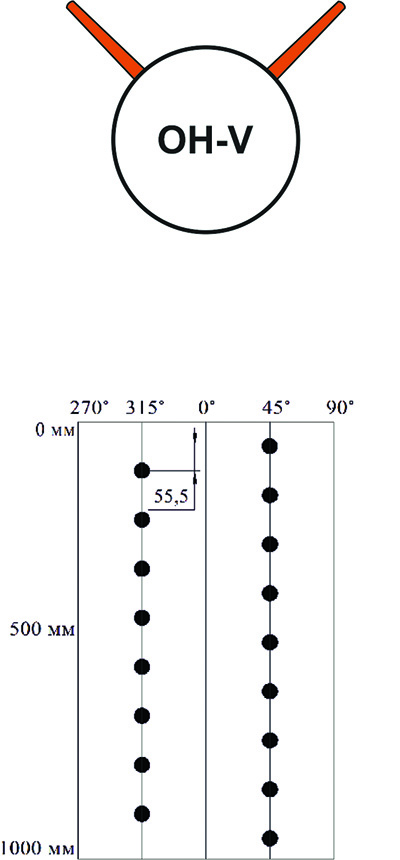

Phasing Opons and Flat Paerns
