Unique technology of wet explosive extrusion combined with high-quality braiding materials for production of detonating cords provides fault-free performance.
 |

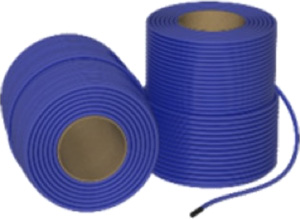

DETOCORD RDXTemperature and water resistant RDX detonating cord is used in perforating-explosive equipment in wells at temperature up to 170°C during 2 hours. Color – dark blue or black. |
 |

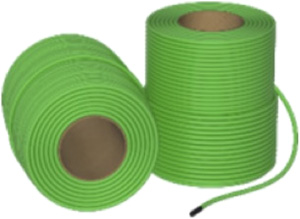

DETOCORD НМXTemperature and water resistant HMX detonating cord is used in perforating-explosive equipment in wells at temperature up to 200°C during 2 hours. Color – green. |
 |

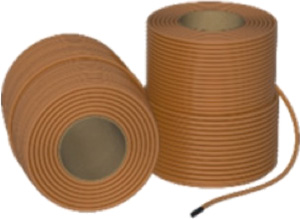

DShS-160Temperature and water resistant RDX detonating cord is used in perforating-explosive equipment in wells at temperature up to 160°C during 2 hours. Color - orange. |
 |

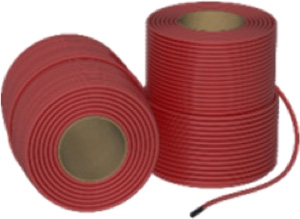

DShS-200Temperature and water resistant HMX detonating cord is used in perforating-explosive equipment in wells at temperature up to 200°C during 2 houra. Color - red. |
| Parameter | Value | |||
|---|---|---|---|---|
| DETOCORD RDX | DETOCORD HMX | DShS-160 | DShS-200 | |
| Explosive type | Hexogen (RDX) |
Octogen (HMX) |
Hexogen (RDX) |
Octogen (HMX) |
| Explosive weight, g | 19±2 | |||
| Outside diameter, mm | 5,3±0,2 | |||
| Detonation velocity per GOST 3250, m/s, not less | 7500±200 | 7800±200 | 7400±200 | 7700±200 |
| Min allowable temperature, °C | -50 | |||
| Max allowable temperature, °C: |
170 | 200 | 160 | 200 |
| Maximum operating temperature for detonating cord in non-sealed perforating-explosive equipment at pressure (100±5) MPa, °С: | ||||
| in water during 2 hours; | 150±5 | |||
| in diesel fuel during 2 hours; | 150±5 | |||
| in alkaline conditions (aqueous solution of potassium hydroxide with 2% mass fraction) during 2 hours; | 150±5 | |||
| in acidic conditions (hydrochloric acid with 15% mass fraction) during 10 min | 150±5 | |||
| in acidic conditions (hydrochloric acid with 15% mass fraction) during 40 min | 130±5 | |||
| in acidic conditions (hydrochloric acid with 15% mass fraction) during 90 min | 80±5 | |||
| Coating color | Dark blue or black | Green | Orange | Red |
| Classificaon code/UN number |
1.1D/0065 1.4S/0349 |
1.1D/0065 | ||
| Detonation transfer with overlap from 30 mm and more | Yes | |||
