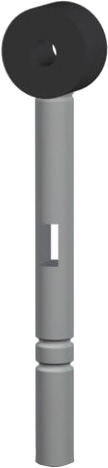

Permissible insensitive blasting cartridges PVPD-N and PVPD-N-165 are used to initiate detonating cord in hollow-carrier perforating guns in oil and gas wells. The cartridges are insensitive to household and portable sources of direct current and industrial frequency current and to electrostatic charges.
| Parameter | Value | ||
|---|---|---|---|
| PVPD-N | PVPD-N-165 | ||
| Length, mm | 82 | ||
| Outside diameter, mm | 17 | ||
| Electrical impedance, Ohm | 0,75±0,25 | ||
| Non-fire current, A, during 5 min | 0,22 | ||
| Blasting current parameters for a single cartridge | 1,5А / 10 ms / 15±2 kHz | ||
| Protection from the sources of: | |||
| - direct current | 500±50 V | ||
| - alternating current with frequency (50±5) Hz | 380±20 V | ||
| - static electricity between the shell and the primary winding through a resistor with resistance 500 Ohm | 25 kV / 200 pF | ||
| Max operating temperature and hold time, °C/h | 145/3 | 190/1 | |
| Water seal function | Yes | ||
| Max diameter of connected detonating cord, mm | 6,3 | ||
| Classification code/UN number |
1.1B/0030 1.4S/0456 |
1.4S/0456 | |
