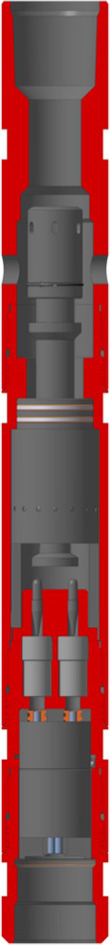

I ISKRA 89-D firing head with redundant firing chain is used for iniaon of detonaon chain of shaped charges by one of two ways:
- hydro-mechanical, by dropping down a drop bar or pumping a ball;
- hydraulic, by pressurizaon in a producon casing;
during TCP explosive-perforang works in vercal, direconal and horizontal wells
The head can have redundant iniaon and is used when it is necessary to minimize or completely exclude perforang gun misfire due to the failure of the main head iniaon device.
The main iniaon device is one of two percussion detonators in the head assembly.
Specific Features
- Reduces probability of perforang gun failure due to iniang means;
- Contains two percussion detonators TOR-200U;
- Meets the requirements for explosive-perforang works on offshore plaorms;
- Hydraulic iniaon can be realized through casing-tubing annulus.
| Parameter | Value |
|---|---|
| Outside diameter, mm | 89 |
| Nominal tubing diameter, mm | Tubing 73 |
| Max hydrostac operang pressure (liquid column + applied pressure), MPa | 96 |
| Min hydrostac pressure, MP | 5,5 |
| Max allowable temperature, °C: | |
| 1 hour hold time | 200 |
| 48 hour hold time | 170 |
| 144 hour hold time | 120 |
| Min number of shear pins to control actuaon pressure, pcs. | 6 |
| Max number of shear pins to control actuaon pressure, pcs | 2 |
| Max borehole inclinaon angle, degree, at iniaon by: | 16 |
| Максимальный угол наклона скважины, град., при инициировании: | |
| drop bar | 45 |
| pressure | not limited |
| ball | not limited |
| Length, mm | 780 |
| Weight, kg | 28 |
| Load capacity, t, not more | 60 |
| Наименование применяемого ударного детонатора | TOR-200U |
